Pre-insulated Male Terminals Connectors Nylon 66 Wholesale

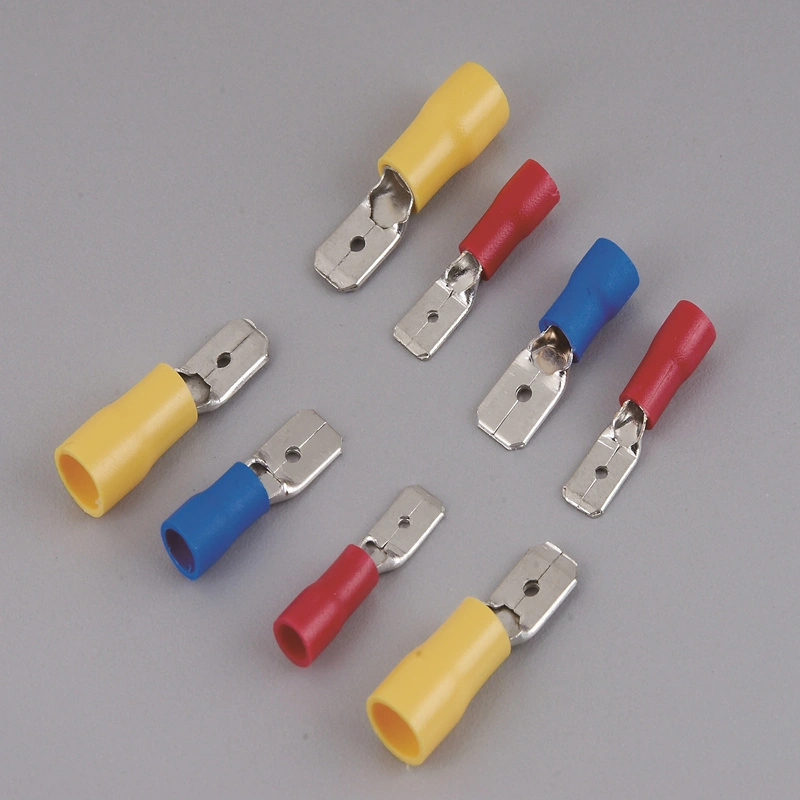

Pre-insulated Male Terminal
Insulated Male Disconnect (MDD TYPE)
Electrelytic Copper
Tin Plated
Easy Entry
PVC Insulation
SPEC:
| Type | Dwire Range | B | E | t | D | H | Color | A | |
| AWG/MCM | mm2 | ||||||||
| RM110(5) | 22-16 | 0.25-1.65 | 2.8 | 18.5 | 0.5 | 3.5 | 9.7 | Red | 10 |
| RM110(8) | 2.8 | 18.5 | 0.8 | ||||||
| RM187(5) | 4.8 | 19 | 0.5 | ||||||
| RM187(8) | 4.8 | 19 | 0.8 | ||||||
| RM250 | 6.3 | 20.5 | 0.8 | ||||||
| RM110(5) | 16-14 | 1.04-2.63 | 2.8 | 18.5 | 0.5 | 4 | 9.7 | Blue | 15 |
| RM110(8) | 2.8 | 18.5 | 0.8 | ||||||
| RM187(5) | 4.8 | 19 | 0.5 | ||||||
| RM187(8) | 4.8 | 19 | 0.8 | ||||||
| RM250 | 6.3 | 20.5 | 0.8 | ||||||
| YM110(5) | 12-10 | 2.63-6.64 | 2.8 | 22.5 | 0.5 | 5.4 | 13.7 | Yellow | 24 |
| YM110(8) | 2.8 | 22.5 | 0.8 | ||||||
| YM187(5) | 4.8 | 23 | 0.5 | ||||||
| YM187(8) | 4.8 | 23 | 0.8 | ||||||
| YM250 | 6.3 | 24.5 | 0.8 | ||||||
Description
◆ Brass
◆ Tin Plated
◆ *P.V.C. Insulation
Packaging Details:
● Normal: 100 pcs /polybag
● OEM/ODM: Available
● Start Port: Ningbo/ Shanghai
● Lead time: 20-30 working days
Product Information
Product Parameters
| Type | Dwire Range | B | L | φD | H | Color | Maximum current (A) | |
| AWG/ MCM | mm2 | |||||||
| RM 110(5) | 22-16 | 0.25-1.65 | 2.8 | 18.5 | 3.5 | 9.7 | Red | 10 |
| RM 110(8) | 2.8 | 18.5 | ||||||
| RM 187(5) | 4.8 | 19 | ||||||
| RM 187(8) | 4.8 | 19 | ||||||
| RM250 | 6.3 | 20.5 | ||||||
| BM 110(5) | 16-14 | 1.04-2.63 | 2.8 | 18.5 | 4 | 9.7 | Blue | 15 |
| BM 110(8) | 2.8 | I&5 | ||||||
| BM 187(5) | 4.8 | 19 | ||||||
| BM 187(8) | 4.8 | 19 | ||||||
| BM250 | 6.3 | 20.5 | ||||||
| YM250 | 12-10 | 2.63-6.64 | 6.3 | 24.5 | 5.4 | 13.7 | Yellow | 24 |
