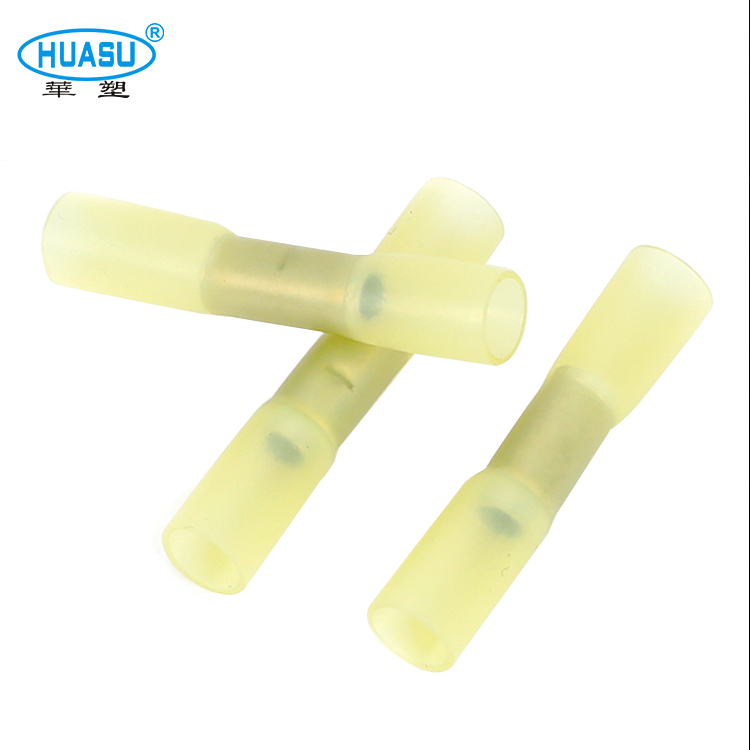

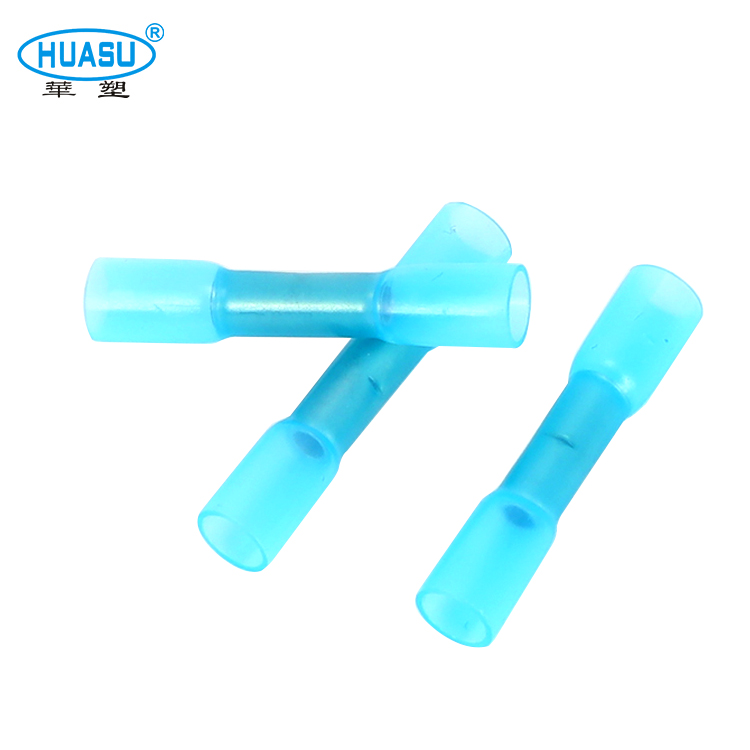

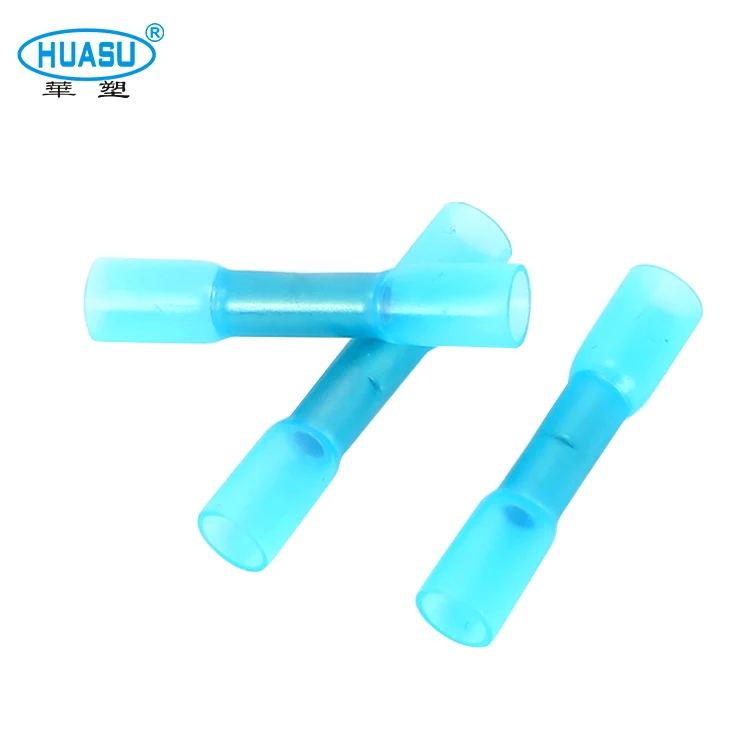

Nylon Fully Insulated Butt Splice
Electrolytic Copper Tube
Tin Plated
P.V.C.Insulation
Made of high-quality copper.
Insulated, safe, and easy to use.

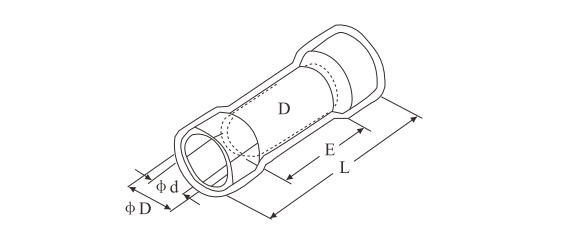

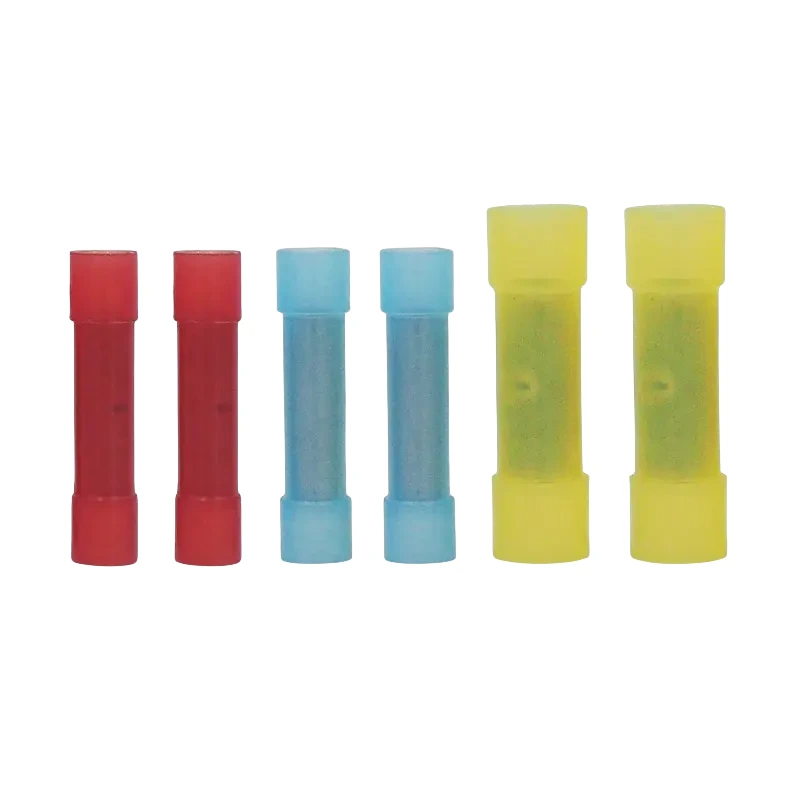

| Type | Dwire Range | L | E | ΦD | Φd | Color | MAX current | |
| AWG/MCM | mm² | 2.4 | ||||||
| BV1.25N | 22-16 | 0.25-1.65 | 23.7 | 15 | 4 | Red | 19 | |
| BV2N | 16-14 | 1.04-2.63 | 23.7 | 15 | 4.5 | Blue | 27 | |
| BV5.5N | 12-10 | 2.63-6.64 | 23.7 | 15 | 4 | Yellow | 48 | |
