Pre-insulated Quick Wiring Crimping Bullet Male Spade Disconnector Terminal
5.0
Place of Origin:
Zhejiang, China
Brand Name:
WAHSURE
Model:
PT, RT, SS
Material:
Nylon 66
Certificate:
SGS Certificate, ISO9001, ISO14001, IATF16949, UL, CE
Logo:
WAHSURE
Capacity:
300 ton per month
Factory price:
Negotiate
Supply Ability:
3600 ton per year
Payment terms:
T/T, L/C, Alibaba payment
Min.Order:
USD5000
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

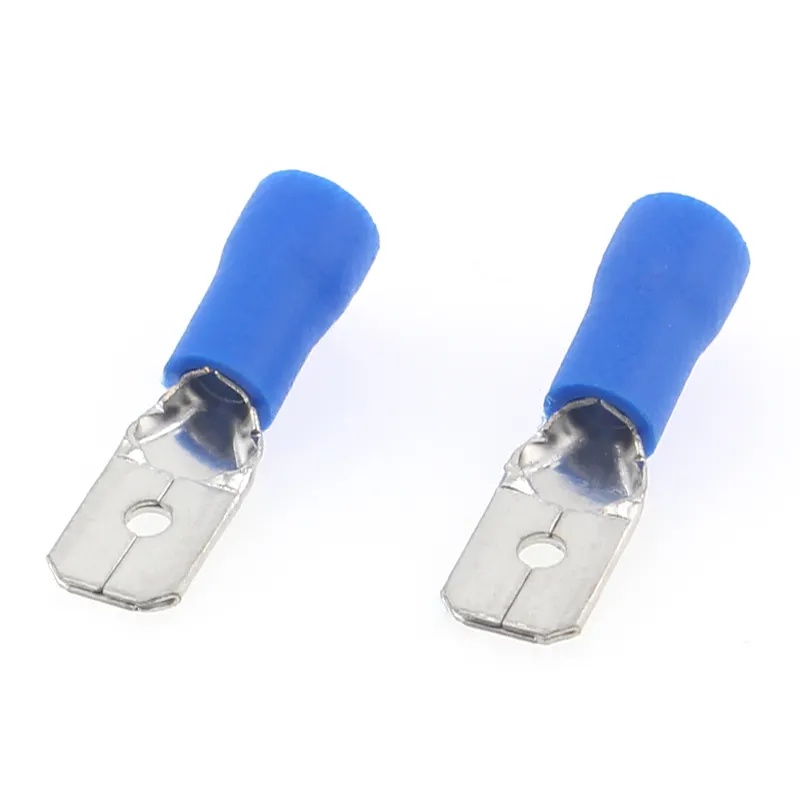

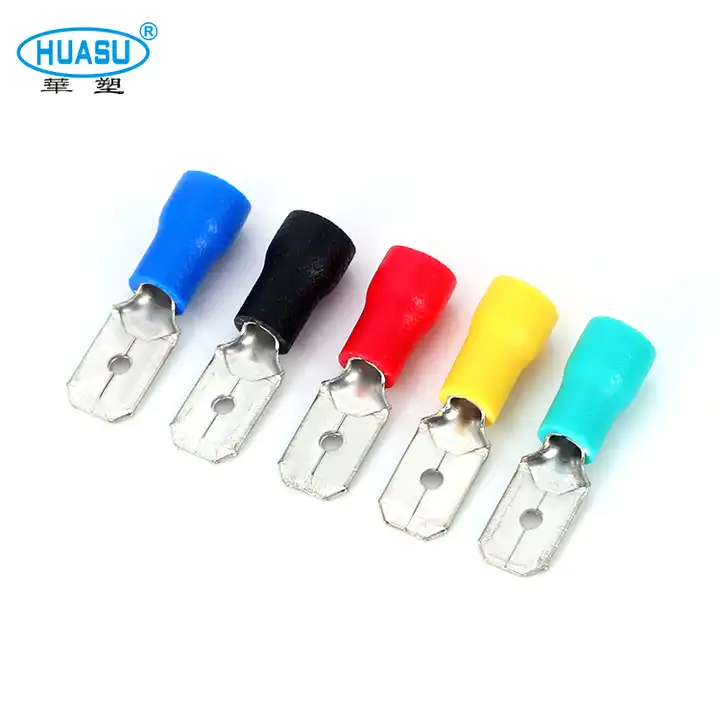

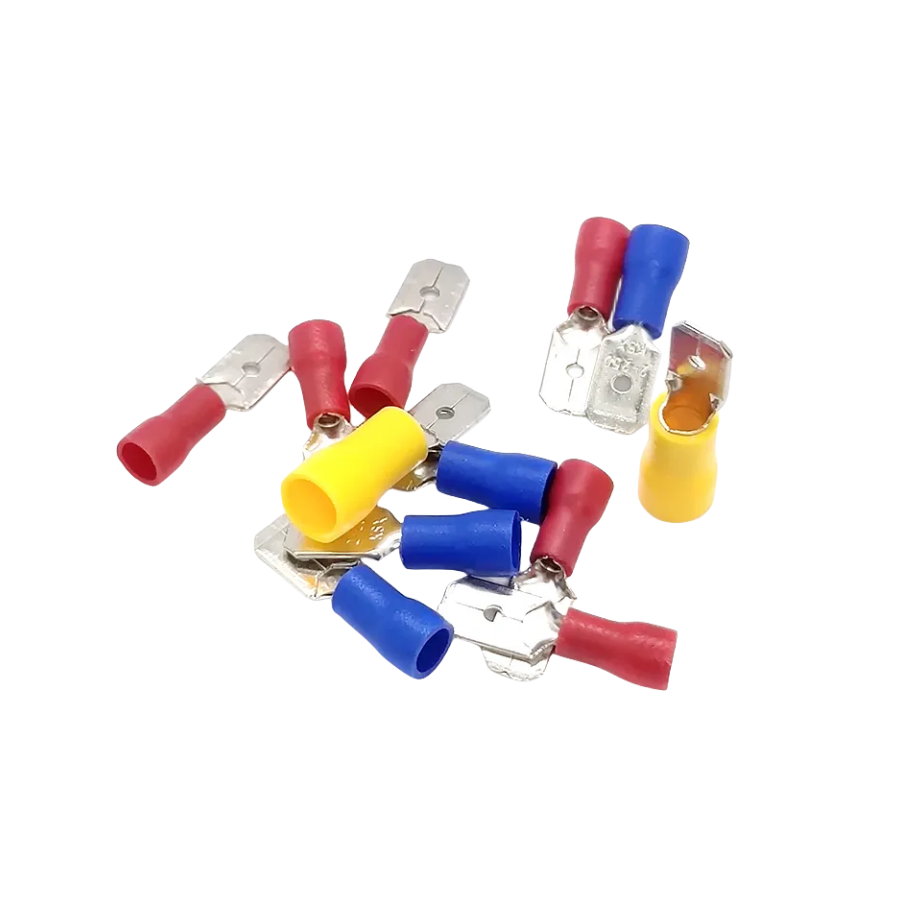

Pre-insulated male terminals
Electrelytic copper
Tin plated
Easy entry
PVC insulation
In competitive prive

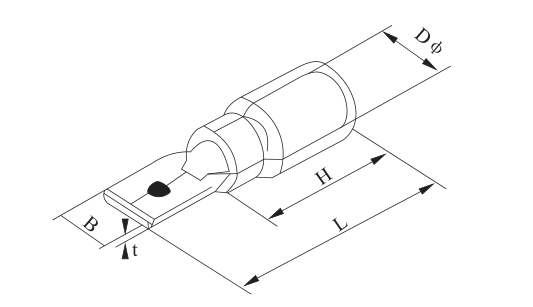

SPEC:
| Part No | Type | Dwire Range | B | E | t | D | H | Color | A | Crimping Tools | |
| AWG/MCM | mm2 | ||||||||||
| 4701 | RM110(5) | 22-16 | 0.25-1.65 | 2.8 | 18.5 | 0.5 | 3.5 | 9.7 | Red | 10 | YYT-1 YYT-7 2026NJ |
| 4702 | RM110(8) | 2.8 | 18.5 | 0.8 | |||||||
| 4703 | RM187(5) | 4.8 | 19 | 0.5 | |||||||
| 4704 | RM187(8) | 4.8 | 19 | 0.8 | |||||||
| 4705 | RM250 | 6.3 | 20.5 | 0.8 | |||||||
| 4706 | RM110(5) | 16-14 | 1.04-2.63 | 2.8 | 18.5 | 0.5 | 4 | 9.7 | Blue | 15 | |
| 4707 | RM110(8) | 2.8 | 18.5 | 0.8 | |||||||
| 4708 | RM187(5) | 4.8 | 19 | 0.5 | |||||||
| 4709 | RM187(8) | 4.8 | 19 | 0.8 | |||||||
| 4710 | RM250 | 6.3 | 20.5 | 0.8 | |||||||
| 4711 | YM110(5) | 12-10 | 2.63-6.64 | 2.8 | 22.5 | 0.5 | 5.4 | 13.7 | Yellow | 24 | |
| 4712 | YM110(8) | 2.8 | 22.5 | 0.8 | |||||||
| 4713 | YM187(5) | 4.8 | 23 | 0.5 | |||||||
| 4714 | YM187(8) | 4.8 | 23 | 0.8 | |||||||
| 4715 | YM250 | 6.3 | 24.5 | 0 | |||||||
