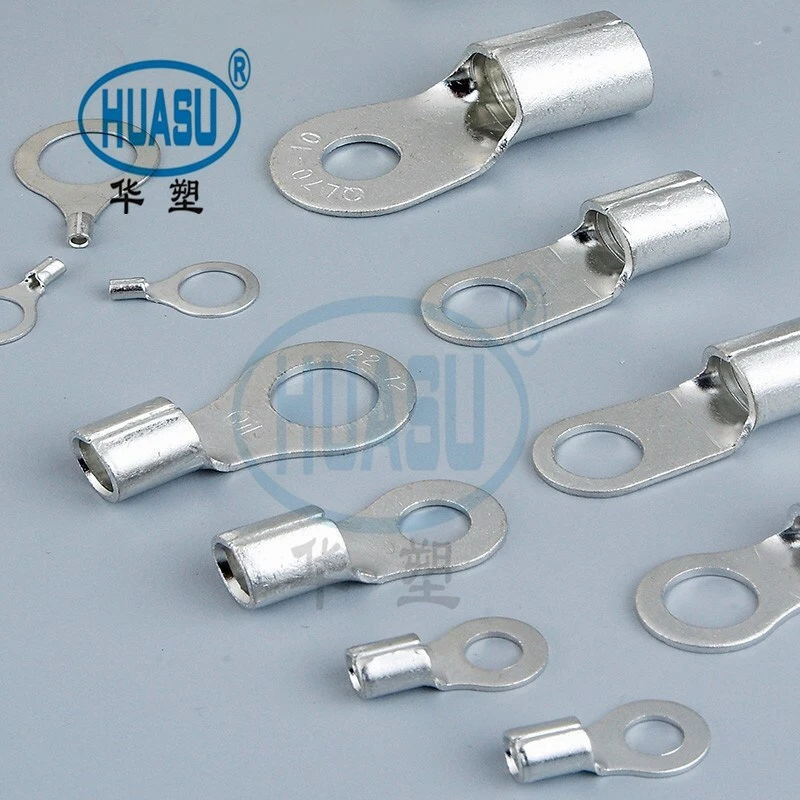

Electrical Non Insulated Ring Terminal Connectors Wholesale
Non Insulated Ring Terminal
Electrolytic Copper
Soldered Barrel
Tin Plated
| Type | Dwire Range | ΦD | Φd 1 | E | 美制螺栓号 | F | Φd 2 | L | Color | 最大电流A | |
| AWG/MCM | mm² | ||||||||||
| RNB1.25-3 | 22-16 | 0.5-1.5 | 3.4 | 1.7 | 4.8 | #4 | 4.95 | 5.7 | 3.2 | 12.6 | 19 |
| RNB1.25-3.5S | #6 | 4.95 | 5.7 | 3.7 | 12.6 | ||||||
| RNB1.25-3.5M | #6 | 6.3 | 6.6 | 3.7 | 14.4 | ||||||
| RNB1.25-3.5L | #6 | 7 | 8 | 3.7 | 15.8 | ||||||
| RNB1.25-4S | #8 | 6.3 | 6.6 | 4.3 | 14.4 | ||||||
| RNB1.25-4L | #8 | 7 | 8 | 4.3 | 15.8 | ||||||
| RNB1.25-5 | #10 | 7 | 8 | 5.3 | 15.8 | ||||||
| RNB1.25-6 | 1-4 | 11.1 | 11.6 | 6.5 | 21.8 | ||||||
| RNB1.25-8 | 5/16 | 11.1 | 11.6 | 8.4 | 21.8 | ||||||
| RNB1.25-10 | 3/8 | 13.9 | 13.6 | 10.5 | 25.5 | ||||||
Description
◆ Electrolytic Copper
◆ Tin Plated
◆ Easy entrya
◆ P. V. C. Insulation
Product Information
Product Parameters
Type | Dwire Range | 4φD | H | American bolt No | F | B | φd2 | L | Maximum current A | |
AWG/ MCM | mm2 | |||||||||
RNB1.25-3S | 22-16 | 0.5-1.5 | 4.3 | 10 | #4 | 4.3 | 5.7 | 3.2 | 17.8 | 19 |
RNB1.25-3.5S | #6 | 4.3 | 5.7 | 3.7 | 17.8 | |||||
RNB1.25-3.5M | #6 | 6.3 | 6.6 | 3.7 | 20.1 | |||||
RNB1.25-3.5L | #6 | 7 | 8 | 3.7 | 21.5 | |||||
RNB1.25-4S | #8 | 6.3 | 6.6 | 4.3 | 20.1 | |||||
RNB1.25-4L | #8 | 7 | 8 | 4.3 | 21.5 | |||||
RNB 1.25-5 | #10 | 7 | 8 | 5.3 | 21.5 | |||||
RNB 1.25-6 | 1/4 | 11.1 | 11.6 | 6.5 | 27.5 | |||||
RNB 1.25-8 | 5/16 | 11.1 | 11.6 | 8.4 | 27.5 | |||||
RNB 1.25-10 | 3/8 | 13.9 | 13.6 | 10.5 | 31.6 | |||||
RNB2-3 | 16-14 | 1.5-2.5 | 4.9 | 10 | #4 | 4.3 | 6.6 | 3.2 | 17.8 | 27 |
RNB2-3.5S | #6 | 4.3 | 6.6 | 3.7 | 17.8 | |||||
RNB2-3.5M | #6 | 7 | 6.6 | 3.7 | 21 | |||||
RNB2-3.5L | #6 | 7.8 | 8.5 | 3.7 | 22.5 | |||||
RNB2-4S | #8 | 7 | 6.6 | 4.3 | 21 | |||||
RNB2-4L | #8 | 7.8 | 8.5 | 4.3 | 22.5 | |||||
RNB2-5S | #10 | 7.8 | 8.5 | 5.3 | 22.5 | |||||
RNB2-5L | #10 | 7.3 | 9.5 | 5.3 | 22.5 | |||||
RNB2-6 | 1/4 | 11 | 12 | 6.5 | 27.6 | |||||
RNB2-8 | 5/16 | 11 | 12 | 8.4 | 27.6 | |||||
RNB2-10 | 3/8 | 13.9 | 13.6 | 10.5 | 30.2 | |||||
RNB3.5-4 | 14-12 | 2.5-4 | 6.3 | 12.5 | #8 | 7.7 | 8 | 4.3 | 24.5 | 37 |
RNB3.5-5S | #10 | 7.7 | 8 | 5.3 | 24.5 | |||||
RNB3.5-5L | #10 | 7.7 | 12 | 5.3 | 28 | |||||
RNB3.5-6 | 1/4 | 7.7 | 12 | 6.5 | 28 | |||||
RNB5.5-3.5 | 12-10 | 4-6 | 6.7 | 12.5 | #6 | 5.9 | 7.2 | 3.7 | 21.4 | 48 |
RNB5.5-4S | #8 | 5.9 | 7.2 | 4.3 | 21.4 | |||||
RNB5.5-4L | #8 | 8.3 | 9.5 | 4.3 | 25.5 | |||||
RNB5.5-5 | #10 | 8.3 | 9.5 | 5.3 | 25.5 | |||||
RNB5.5-6 | 1/4 | 13 | 12 | 6.5 | 31.5 | |||||
RNB5.5-8 | 5/16 | 13.7 | 15 | 8.4 | 33.7 | |||||
RNB5.5-10 | 3/8 | 13.7 | 15 | 10.5 | 33.7 | |||||
RNB5.5-12 | 1/2 | 16 | 19.2 | 13 | 38.1 | |||||
