Factory information : Since 1997
Double Wing Screw On Wire Connectors - UL Listed PVC mateiral 94V-0
UL, CUL, ETL, ROHS, REACH , SGS
5.0
Operation temperature:
105°C (221°F)
Place of Origin:
Zhejiang, China
Brand Name:
WAHSURE
Model:
HS-HP11, HP12,HP13,HP15,HP17,HP19
Material:
PVC (UL 94V-0), zinc-plated steel spring
Certificate:
UL, CUL, ETL, RoHS, REACH, SGS
Logo:
Custom logo available
Capacity:
300 tons / month
Factory price:
From USD 0.02 / pc (MOQ USD 5,000)
Supply Ability:
3,600 tons / year
Payment terms:
T/T, 30% deposit + 70% before shipment
Min.Order:
USD 5,000 per order, mixed sizes accepted
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
View size guide
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Double Wing Screw On Wire Connectors UL listed PVC 94V-0 Wholesale
| Item Number | H(mm) | W(mm) | Internal Dia D(mm) | Applicable Wire | Colour | Certificate |
| HS-HP11 | 25.4 | 18 | 10 | 18-10 AWG | Yellow | UL,CUL,ETL,RoHS,REACH |
| HS-HP12 | 27.7 | 17.8 | 10 | 22-8 AWG | Tan | UL,CUL,ETL,RoHS,REACH |
| HS-HP13 | 30.5 | 23.1 | 12 | 18-8 AWG | Red | UL,CUL,ETL,RoHS,REACH |
| HS-HP15 | 32.6 | 25.5 | 14.6 | 18-8 AWG | Grey | UL,CUL,ETL,RoHS,REACH |
| HS-HP17 | 39.5 | 31.7 | 17.8 | 14-6 AWG | Blue | UL,CUL,ETL,RoHS,REACH |
| HS-HP19 | 28.8 | 20.2 | 12.1 | 14-10 AWG | Green | NON |
Description
Double wing screw on wire connectors are the fastest way to join two or more conductors without pre-twisting. Simply strip the wire, insert it into the connector and turn the wings clockwise until tight — no tools required.
Each connector is moulded from flame-retardant Nylon 66 rated UL 94V-0, with a zinc-plated square steel spring inside that grips both solid and stranded copper and resists vibration. With an operating temperature of 105°C, they are suitable for electrical panels, LED lighting, HVAC motors, pumps, marine and solar installations.
Six models cover wire sizes from 22 AWG to 6 AWG, each colour-coded for fast identification on site. Order HS-HP11 for smaller control wiring, or move up to HS-HP17 for 14-6 AWG power connections.
Applications
- Electrical panels and control cabinets
- LED lighting and driver wiring
- HVAC motors, pumps and compressors
- Marine, solar and outdoor installations
- OEM wiring harnesses and appliance assembly
Why buy from Huihua
- Manufacturer since 1997, AEO authorised exporter
- UL, CUL and ETL listed wire connectors
- ISO 9001, ISO 14001, ISO 45001 and IATF 16949 certified factory
- 13,333 m² plant with an in-house CNAS-standard testing laboratory
- Exporting to more than 50 countries
- OEM and ODM available — custom colours, packaging and logo
Packaging & delivery
- Standard: 100 pcs per polybag in export cartons
- Port of loading: Ningbo / Shanghai
- Lead time: 20-30 working days for production orders
- Stock items can ship within 7-10 days
YUEQING HUIHUA ELECTRONIC CO., LTD is a professional manufacturer of cable ties, wire connectors, cable clips and terminals. We are an ISO 9001 certified enterprise and approved by IATF 16949, and we also hold ISO 14001 and ISO 45001 certificates. Our cable ties and wire connectors are certified by UL, CE and ETL. Most products comply with RoHS, REACH and PFOS standards of the European Union.
We are a Class A (AEO certified) enterprise for customs and export to more than 50 countries including the United States, the United Kingdom, Germany, Spain and South Africa.
In 2019 we moved into the Yueqing Economic Development Zone. The new factory covers an area of 13,333 square metres with advanced production equipment, professional technical staff, complete quality testing instruments and a testing laboratory built to CNAS standards. We have a dedicated R&D department that can develop new products for your special requirements.
Advanced Equipment & Technology is the primary productivity:

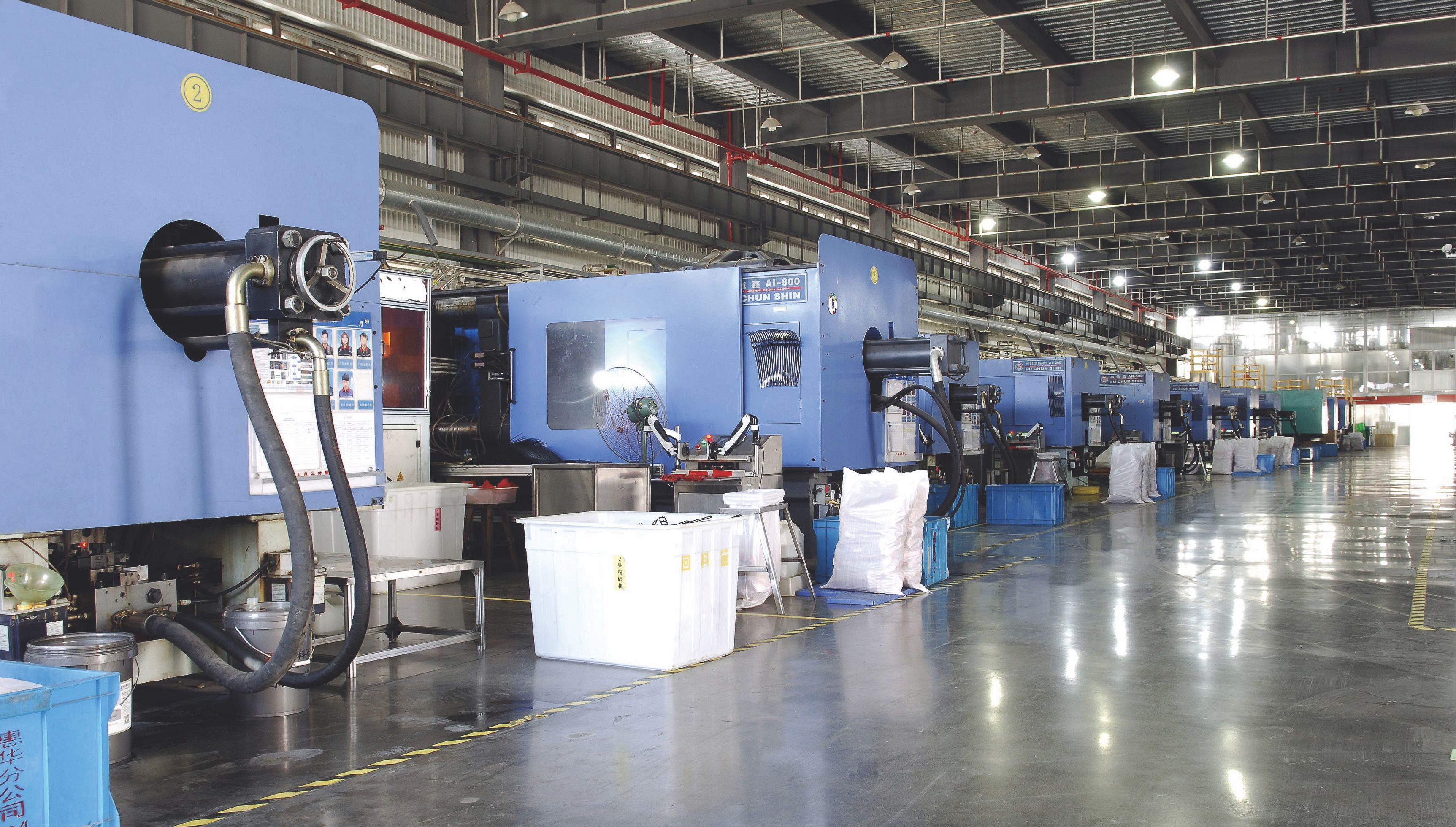

- Injection workshop:
Advance equipment and good raw materials are the basis of good qulaity.

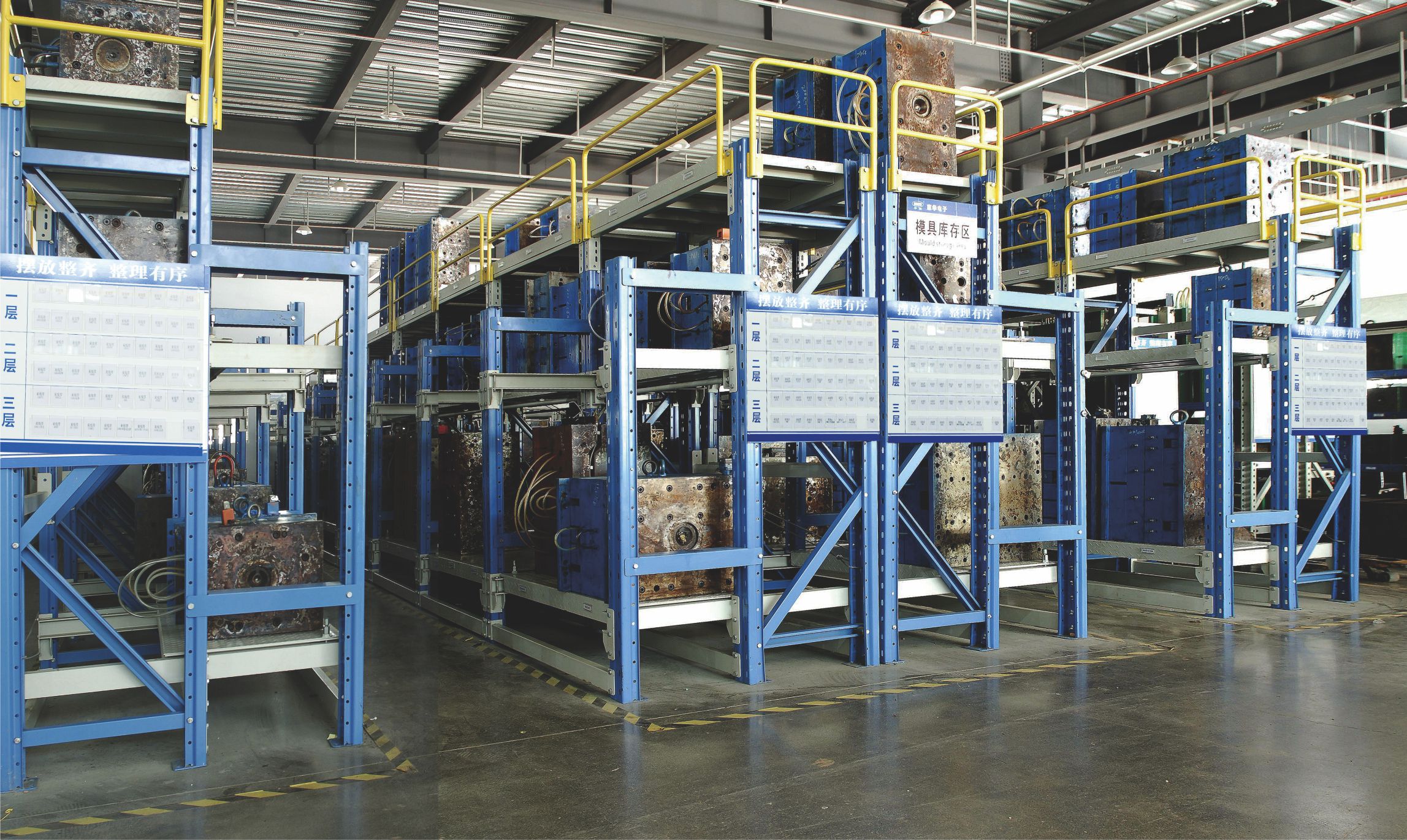

- Mold warehouse:
We have independent technical dept with advanced mold processing equipment,committed mold maintenance and developing new products. ![Double Wing Screw On Wire Connectors - UL Listed PVC mateiral 94V-0 10]()
- Strict Inspeciton:
We have the testing laboratory according to CNAS standard, weith advanced and complete testing equipment, an d also can do ROHS 2.0 inspection for all products.
Products :
Cable Ties series, Cable Clips & Tie mount series, Wire Connectors series,Terminals series etc
About the orders & Delivery :
Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.
1
How do I purchase your goods?
Payment method: T/T payment 30% as deposit. 70% paid before delivery.
2
How long is the lead time?
Delivery time: If there are stocks available in the warehouse, we may delivery it in several days. Or 20-30 days after receiving the deposit. it depend on the quantity ordered.
3
Min. order:
- Our MOQ is USD5000 each order. - Order a HQ container, price will be more favorable.
4
What the certificate do you have?
We have UL, CUL, ETL, ROHS , REACH for wire connectors.
5
What can kind of packing of your product?
- Neutral Packing, export standard carton.
6
How long does it take to ship？
At present, international shipping is not only facing the pressure of historically high price, but also facing a shipping time twice as long as normal. However, through Stock Item Plan, we can ship the order to you within 7-10 days, which can help you save 30days of production and the total timing is same as before. This will be another advantage over your competitors.
Welcome to inquire !
Description
◆ Material: PVC, with spring inside.
◆ Usage: Peel wire coat, insert the wire in, then tighten.
◆ Feature: Peel wire coat, insert the wire in, then tighten.
◆ UL certificated
Packaging Details:
● Normal: 100 pcs /polybag
● OEM/ODM: Available
● Start Port: Ningbo/ Shanghai
● Lead time: 20-30 working days
Product Information
Color
Natural, UV black and all colors
Type
Self-locking, push mount, releasable, special hard environment
Usage
Bundle the wire and industrial area use
Accessories
Wire connector, clips etc. wiring accessories
Feature
Bundle the wire and industrial area use
Item Number | H (mm) | W (mm) | Internal diameter D (mm) | Applicable wire | COLOR | Packing |
HS-HP11 | 25.4 | 18 | 10 | 18-10AWG | YELLOW | 100PCS |
HS-HP12 | 27.7 | 17.8 | 10 | 22-8AWG | TAN | |
HS-HP13 | 30.5 | 23.1 | 12 | 18-8AWG | RED | |
HS-HP15 | 32.6 | 25.5 | 14.6 | 18-8AWG | GRAY | |
HS-HP17 | 39.5 | 31.7 | 17.8 | 14-6AWG | BLUE | |
HS-HP19 | 28.8 | 20.2 | 12.1 | 14-10AWG | GREEN |
Product Parameters
