Custom Plastic PG Thread Cable Gland Wholesale
Custom Plastic PG Thread Cable Gland Wholesale

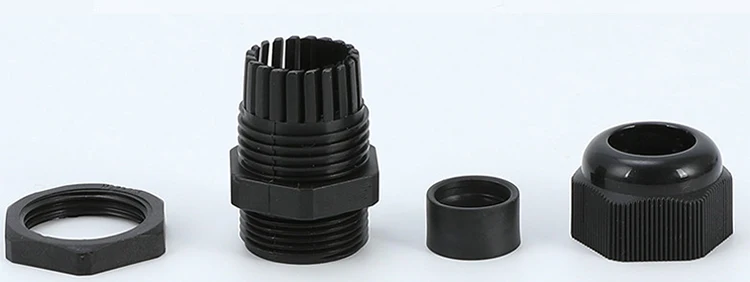

Material: Nylon66, 94V-2 and tight ring from rubber.
Feature:I .Special designation, good strength aile and none damage to electrical machine.
2 .not need to dismetgrate the fix terminal, cable tie can be inserted hrough directly then tighten easy and save time.
Application: used for machiery cotrol box, distribution plate, machine and electrical. etc.
| Item No. | L1(mm) | cable range(mm) | L(mm) | Spanne Size(mm) | L2 mm |
| HS-PG07 | 8 | 3-6.5 | 22 | 16 | 12 |
| HS-PG09 | 8 | 4-8 | 26 | 19 | 16 |
| HS-PG11 | 8 | 5-10 | 27 | 22 | 18 |
| HS-PG13.5 | 9 | 6-12 | 28 | 24 | 20 |
| HS-PG16 | 10 | 10-14 | 30 | 27 | 22 |
| HS-PG19 | 10 | 12-15 | 30 | 27/28 | 24 |
| HS-PG21 | 10 | 13-18 | 35 | 33 | 28 |
| HS-PG25 | 11 | 16-21 | 34 | 35/36 | 30 |
| HS-PG29 | 12 | 18-25 | 40 | 41/42 | 37 |
| HS-PG36 | 14 | 22-32 | 48 | 52/53 | 47 |
| HS-PG42 | 14 | 32-38 | 49 | 60/61 | 54 |
| HS-PG48 | 14 | 37-44 | 50 | 64/65 | 59 |
| HS-PG6 | 27 | 42-50 | 60 | 72 | 70 |
Description

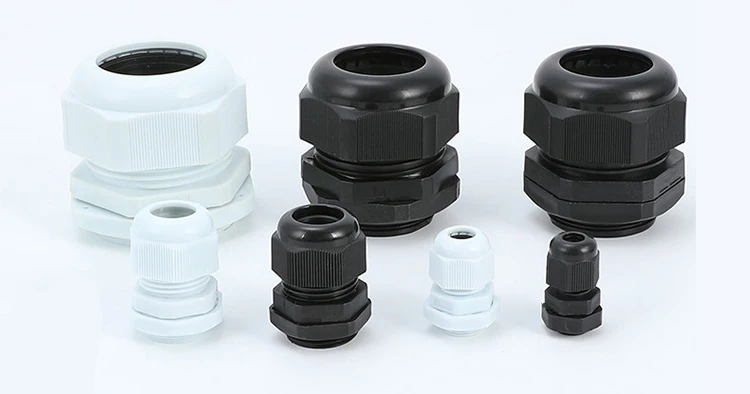

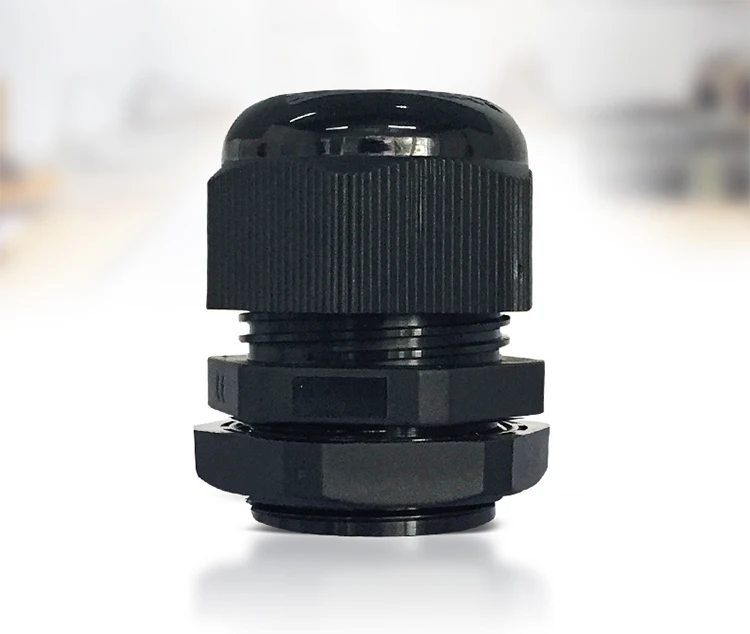

PRODUCT NAME: PG Thread Cable Gland
◆ Material: Nylon 66, 94V-2 and tight ring from rubber.
◆ Feature:
1. Spcial designation, good strength aile and none damage to electrical machine.
2. No need to dismetgrate the fix terminal, cable can be inserted through directly then tighten easy and save time.
◆Application: Used for machiery cotrol box, distribution plate, machine and electrical, etc.
Packaging Details:
● Normal: 100 pcs /polybag
● OEM/ODM: Available
● Start Port: Ningbo/ Shanghai
● Lead time: 20-30 working days
Product Information
Product Parameters

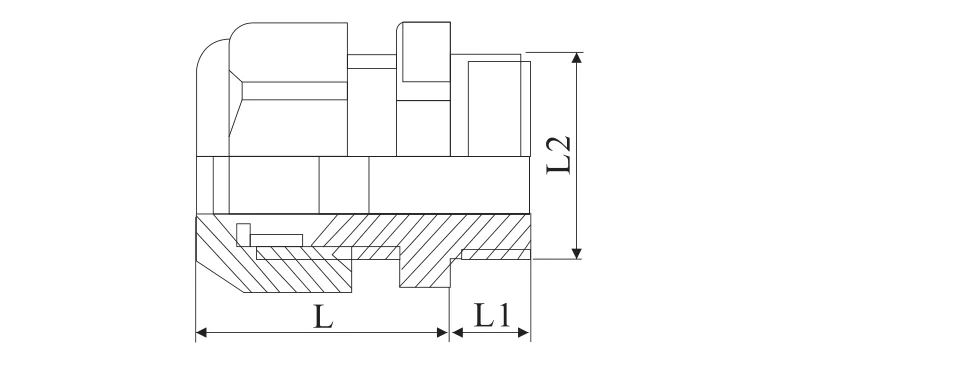

Item Number | L1 (mm) | Cable Range (mm) | L (mm) | Spanne Size (mm) | L2 (mm) |
| HS-PG07 | 8 | 3~6.5 | 22 | 16 | 12 |
| HS-PG09 | 8 | 4~8 | 26 | 19 | 16 |
| HS-PG11 | 8 | 5~10 | 27 | 22 | 18 |
| HS-PG13.5 | 9 | 6~12 | 28 | 24 | 20 |
| HS-PG16 | 10 | 10~14 | 30 | 27 | 22 |
| HS-PG19 | 10 | 12~15 | 30 | 27/28 | 24 |
| HS-PG21 | 10 | 13~18 | 35 | 33 | 28 |
| HS-PG25 | 11 | 16~21 | 34 | 35/36 | 30 |
| HS-PG29 | 12 | 18~25 | 40 | 41/42 | 37 |
| HS-PG36 | 14 | 22~32 | 48 | 52/53 | 47 |
| HS-PG42 | 14 | 32~38 | 49 | 60/61 | 54 |
| HS-PG48 | 14 | 37~44 | 50 | 64/65 | 59 |
| HS-PG63 | 27 | 42~50 | 60 | 72 | 70 |
